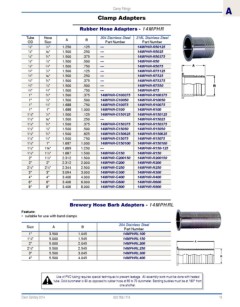

Page 17 - index

Clamp Fittings A

Clamp Adapters

Rubber Hose Adapters - 14MPHR
Tube Hose A B 304 Stainless Steel 316L Stainless Steel
OD Size Part Number Part Number
½" ⅛" 1.250 .125 --- 14MPHR-R50125
½" ¼" 1.500 .250 --- 14MPHR-R5025
½" ⅜" 1.500 .375 --- 14MPHR-R50375
½" ½" 1.500 .500 --- 14MPHR-R50
½" ¾" 1.500 .750 --- 14MPHR-R5075
¾" ⅛" 1.500 .125 --- 14MPHR-R75125
¾" ¼" 1.500 .250 --- 14MPHR-R7525
¾" ⅜" 1.500 .375 --- 14MPHR-R75375
¾" ½" 1.500 .500 --- 14MPHR-R7550
¾" ¾" 1.500 .750 --- 14MPHR-R75
1" ⅜" 1.500 .375 14MPHR-G100375 14MPHR-R100375
1" ½" 1.500 .500 14MPHR-G10050 14MPHR-R10050
1" ¾" 1.688 .750 14MPHR-G10075 14MPHR-R10075
1" 1" 1.688 1.000 14MPHR-G100 14MPHR-R100
1½" ⅛" 1.500 .125 14MPHR-G150125 14MPHR-R150125
1½" ¼" 1.500 .250 --- 14MPHR-R15025
1½" ⅜" 1.500 .375 14MPHR-G150375 14MPHR-R150375
1½" ½" 1.500 .500 14MPHR-G15050 14MPHR-R15050
1½" ⅝" 1.500 .625 14MPHR-G150625 14MPHR-R150625
1½" ¾" 1.500 .750 14MPHR-G15075 14MPHR-R15075
1½" 1" 1.687 1.000 14MPHR-G150100 14MPHR-R150100
1½" 1¼" 1.689 1.250 --- 14MPHR-R150-125
1½" 1½" 1.687 1.500 14MPHR-G150 14MPHR-R150
2" 1½" 2.312 1.500 14MPHR-G200150 14MPHR-R200150
2" 2" 2.312 2.000 14MPHR-G200 14MPHR-R200
2½" 2½" 2.344 2.500 14MPHR-G250 14MPHR-R250
3" 3" 3.094 3.000 14MPHR-G300 14MPHR-R300
4" 4" 3.406 4.000 14MPHR-G400 14MPHR-R400
6" 6" 3.406 6.000 14MPHR-G600 14MPHR-R600
8" 8" 3.406 8.000 14MPHR-G800 14MPHR-R800

Brewery Hose Barb Adapters - 14MPHRL
Feature:
• suitable for use with band clamps
304 Stainless Steel
Size A B
Part Number
1" 3.500 1.045 14MPHRL100
1½" 5.000 1.545 14MPHRL150
2" 5.000 2.045 14MPHRL200
2½" 5.500 2.545 14MPHRL250
3" 5.500 3.045 14MPHRL300
4" 5.500 4.045 14MPHRL400

Use of PVC tubing requires special techniques to prevent leakage. All assembly work must be done with heated
tube. Cold durometer is 90 as opposed to rubber hose at 65 to 70 durometer. Banding buckles must be at 180° from
one another.

Dixon Sanitary 2014 800.789.1718 15
