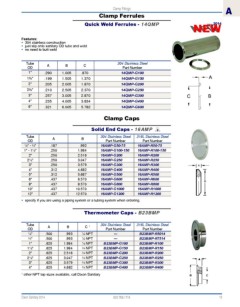

Clamp Fittings A
Clamp Ferrules

Quick Weld Ferrules - 14QMP

Features:
• 304 stainless construction
• just slip onto sanitary OD tube and weld
• no need to butt weld

Tube 304 Stainless Steel
OD A B C Part Number
1" .290 1.005 .870 14QMP-G100
1½" .199 1.505 1.370 14QMP-G150
2" .205 2.005 1.870 14QMP-G200
2½" .210 2.505 2.370 14QMP-G250
3" .257 3.005 2.870 14QMP-G300
4" .235 4.005 3.834 14QMP-G400
6" .321 6.005 5.782 14QMP-G600

Clamp Caps

Solid End Caps - 16AMP
Tube 304 Stainless Steel 316L Stainless Steel
OD A B Part Number Part Number
½" - ¾" .187 .992 16AMP-G50-75 16AMP-R50-75
1" - 1½" .250 1.984 16AMP-G100-150 16AMP-R100-150
2" .250 2.516 16AMP-G200 16AMP-R200
2½" .250 3.047 16AMP-G250 16AMP-R250
3" .250 3.579 16AMP-G300 16AMP-R300
4" .312 4.682 16AMP-G400 16AMP-R400
5" .312 5.687 16AMP-G500 16AMP-R500
6" .437 6.570 16AMP-G600 16AMP-R600
8" .437 8.570 16AMP-G800 16AMP-R800
10" .437 10.570 16AMP-G1000 16AMP-R1000
12" .437 12.570 16AMP-G1200 16AMP-R1200
• specify if you are using a piping system or a tubing system when ordering.

Thermometer Caps - B23BMP

Tube A B C 1 304 Stainless Steel 316L Stainless Steel
OD Part Number Part Number
½" .500 .993 ¼ NPT --- B23BMP-R5014
¾" .500 .993 ¼ NPT --- B23BMP-R7514
1" .625 1.984 ½ NPT B23BMP-G100 B23BMP-R100
1½" .625 1.984 ¾ NPT B23BMP-G150 B23BMP-R150
2" .625 2.516 ¾ NPT B23BMP-G200 B23BMP-R200
2½" .625 3.047 ¾ NPT B23BMP-G250 B23BMP-R250
3" .625 3.579 ¾ NPT B23BMP-G300 B23BMP-R300
4" .625 4.682 ¾ NPT B23BMP-G400 B23BMP-R400
1 other NPT tap sizes available, call Dixon Sanitary
